Tianhongxiang Factory Wholesale Electrical Cable Engineering Rubber YH16 Square Welding Cable, Engineering Welding Wire
$161.00

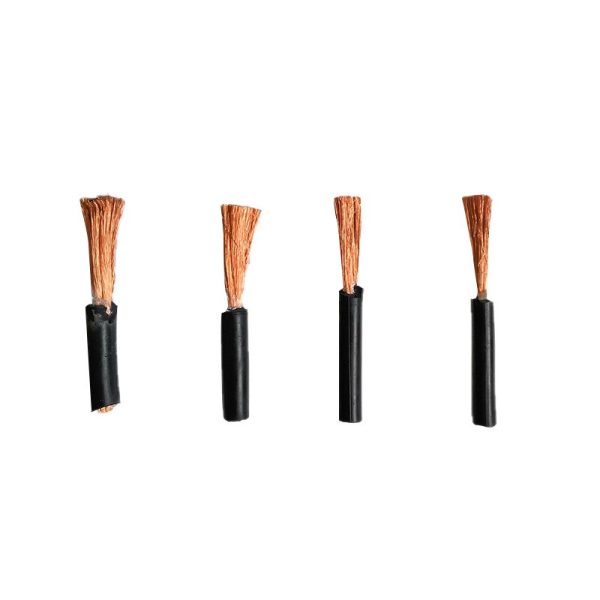

Tianhongxiang YH 16mm² Rubber Insulated Welding Cable (Factory Wholesale) – Engineering Specialized Welding Wire
Tianhongxiang YH 16mm² is a cost-effective engineering-grade rubber-insulated welding cable, adopting multi-strand purple oxygen-free copper conductor and high-toughness rubber insulation & sheath. Rated for AC ≤200V/DC peak ≤400V, it is specially designed for secondary wiring of 160–250A small-to-medium power welding machines, suitable for light industrial welding, on-site maintenance, and decoration project welding operations, with outstanding flexibility and durability.

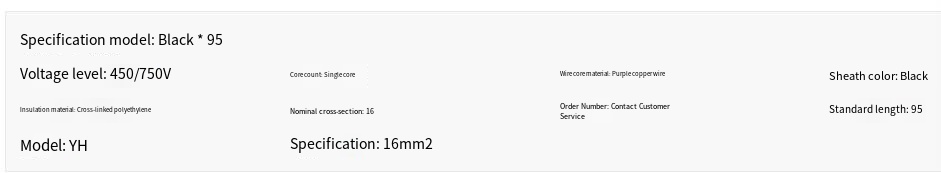

Core Specifications & Structure
| Item | Detailed Parameter |
|---|---|
| Product Model | YH 16mm² (YHF oil-resistant version optional) |
| Conductor Structure | 126 strands × 0.40mm purple oxygen-free copper, compliant with GB/T 3956-2008 Class 5 flexible conductor standard |
| Electrical Performance | 20℃ DC resistance ≤1.15Ω/km; rated current 100–130A |
| Insulation & Sheath | Natural rubber blend (YH) / chloroprene rubber (YHF); insulation thickness ≥0.8mm, sheath thickness ≥ |
