Tianhongxiang Factory supplies rubber cables, 50-square engineering-specific welding cables.
$481.00
Tianhongxiang YH 50mm² Rubber Insulated Welding Cable (Tianjin Factory Direct) – Engineering-Specific High-Current Welding Essential
Tianhongxiang YH 50mm² is a Tianjin-manufactured engineering-grade rubber-insulated welding cable, featuring multi-strand purple oxygen-free copper conductor and heat-resistant rubber insulation/sheath, rated for AC ≤200V/DC peak ≤400V, ideal for secondary wiring of 400-630A welding equipment, industrial engineering welding, and mobile on-site operations, balancing high-current carrying capacity, flexibility, and durability.
Core Specifications & Structure
| Item | Detail |
|---|---|
| Model | YH 50mm² (YHF oil-resistant optional) |

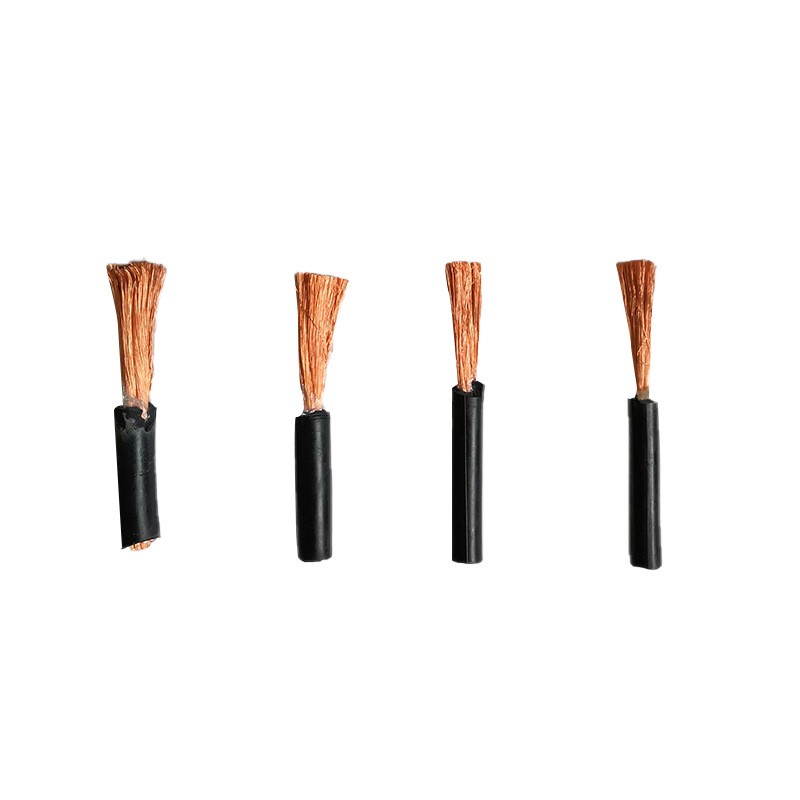

| Conductor | 493 strands × 0.36mm purple oxygen-free copper, Class 5 flexible conductor (GB/T 3956-2008), 20℃ DC resistance ≤0.387Ω/km |
| Insulation & Sheath | Heat-resistant rubber; insulation thickness ≥0.8mm, sheath thickness ≥1.2mm; long-term working temp 65℃ (YHF up to 85℃), max outer diameter ≤19.0mm |
| Voltage Rating | AC ≤200V, DC peak ≤400V; bending radius ≥6× cable outer diameter |
| Certification | CCC, GB 5013.3-2008 compliant |
| Packaging & Weight | 50m/100m roll; reference weight 580kg/km |
