Home Decoration BVR 1.5 Square Multi-strand Flexible Wire, BVR Wire Factory Direct Supply for Home Decoration

Name: Home Decoration BVR 1.5 Square Multi-strand Flexible Wire, BVR Wire Factory Direct Supply for Home Decoration
SKU: 2140
Availability: InStock

Original price was: $27.95.Current price is: $25.00.

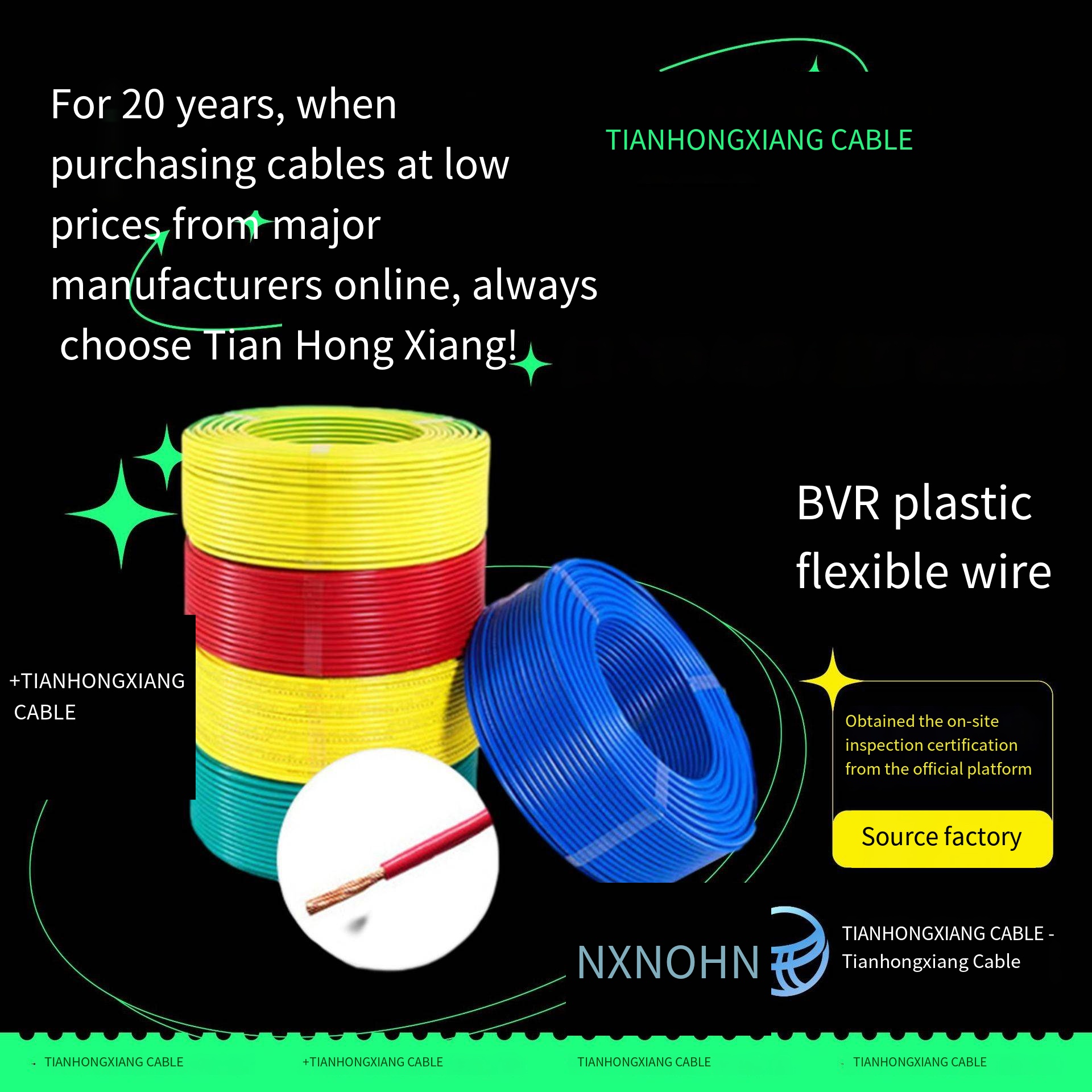

BVR 1.5mm² is a single-core, multi-strand flexible copper wire with PVC insulation, rated at 450/750V, ideal for home decoration lighting circuits, control wiring, and narrow/complex routing scenarios, offering superior flexibility over BV solid wire.

Core Specifications & Structure

Item	Detail
Model	BVR 1.5mm² (B=Building Wire; V=PVC Insulation; R=Flexible Multi-strand)
Conductor	7 strands × 0.52mm oxygen-free copper (≥99.99% purity), DC resistance ≤12.1Ω/km (20℃)
Insulation	PVC, thickness ≥0.6mm, temperature range -15℃ to 70℃, flame-retardant (ZR/ZC optional)
Voltage Rating	450/750V AC; max outer diameter ≤3.4mm
Certification	CCC mandatory, ISO9001, IEC compliance
Nominal Current	~19–25A (70℃, single-core in air)
Weight	~21.3kg/km

Key Advantages

Flexibility: Multi-strand design bends easily for tight turns, pipe-pulling, and overhead/concealed wiring; lower labor cost vs. BV solid wire.
Safety: Uniform insulation, flame-retardant options (ZB/ZC), low smoke/toxic gas emission; anti-oxidation treatment on conductors.
Reliability: High-purity copper ensures stable conductivity; wear/aging-resistant PVC insulation for long service life.

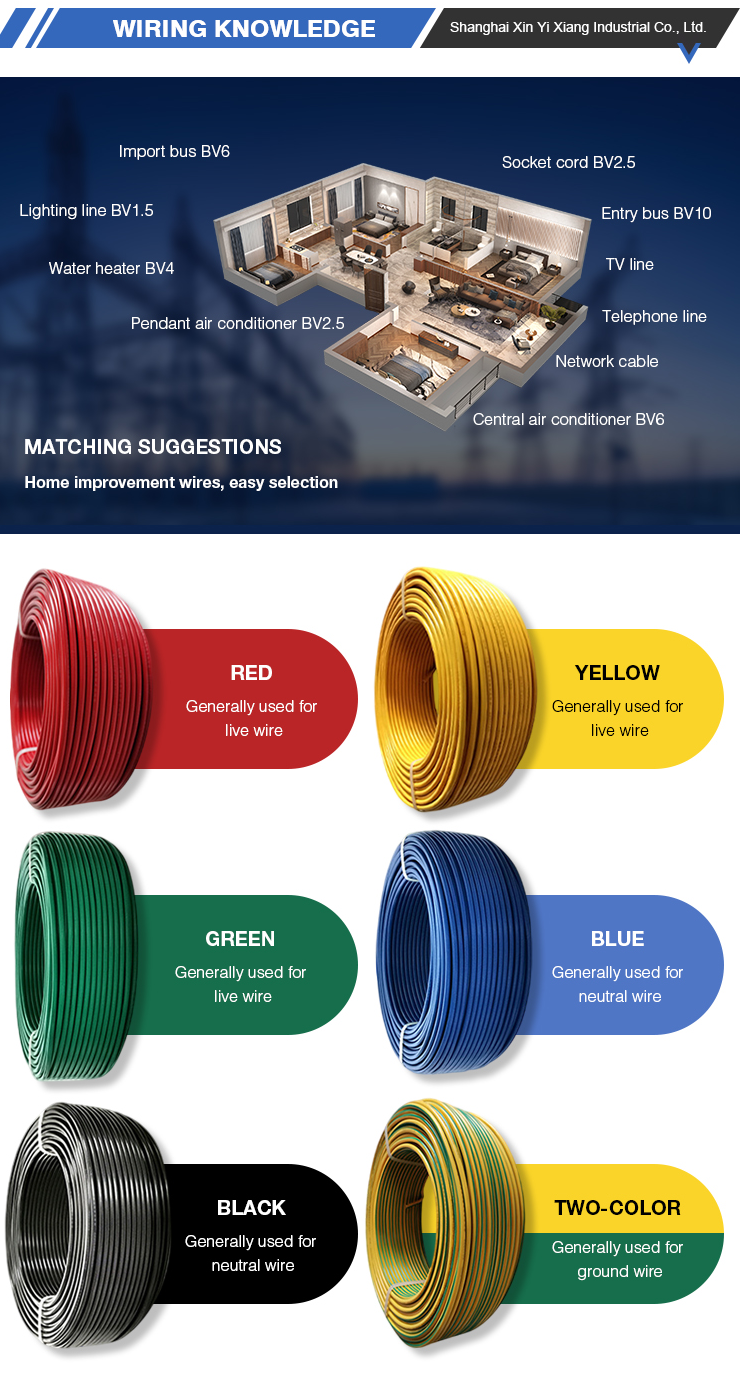

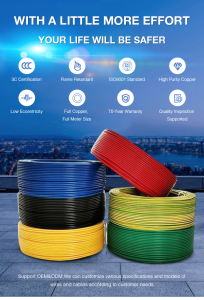

Color Coding: Red (L), Blue (N), Yellow-Green (PE) for clear circuit identification.

Typical Applications

Home decoration: Lighting circuits, switch control lines, secondary wiring in distribution boxes.
Power & control: 450/750V low-voltage fixed laying for appliances, meters, telecom equipment.
Ideal for: Ceiling/concealed pipe routing, frequent bending, and confined spaces where rigidity is a constraint.
