Engineering Specialized Factory Direct Supply 35 Square YH Welding Wire Welding Cable, Commercial Insulated Power Cable

Name: Engineering Specialized Factory Direct Supply 35 Square YH Welding Wire Welding Cable, Commercial Insulated Power Cable
SKU: 2541
Availability: InStock

$331.00

Tianhongxiang YH 35mm² Rubber Insulated Welding Cable (Tianjin Factory Direct) – Engineering & Commercial Welding Essential

Tianhongxiang YH 35mm² is a Tianjin – made engineering – grade rubber – insulated welding cable, featuring multi – strand purple oxygen – free copper conductor and heat – resistant rubber insulation/sheath. It is rated for AC ≤200V/DC peak ≤400V, perfect for secondary wiring of 300-500A welding equipment, commercial welding operations, and on – site mobile construction, integrating flexibility, high – current conductivity, and durability.

Core Specifications & Structure

Item	Detail
Model	YH 35mm² (YHF oil – resistant optional)

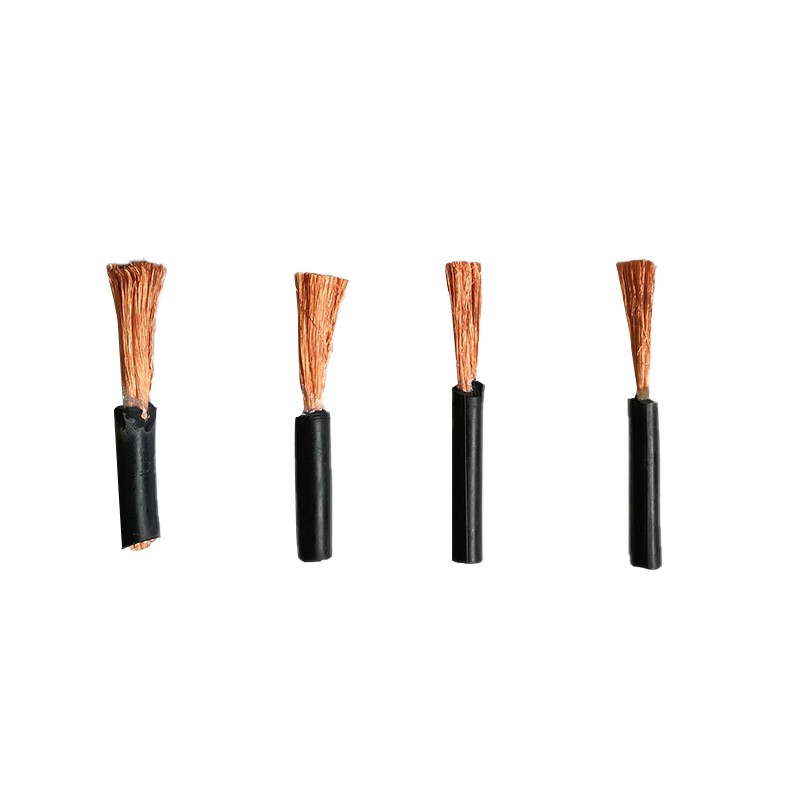

Conductor	326 strands × 0.37mm purple oxygen – free copper, Class 5 flexible conductor (GB/T 3956-2008), 20℃ DC resistance ≤0.524Ω/km
Insulation & Sheath	Heat – resistant rubber (YH: natural rubber blend; YHF: chloroprene rubber double – layer), insulation thickness ≥0.8mm, sheath thickness ≥1.2mm, max outer diameter ≤18.0mm
Voltage Rating	AC ≤200V, DC peak ≤400V; bending radius ≥4× cable outer diameter (D ≤25mm)
Temperature Rating	Long – term working temperature ≤65℃ (YHF optional 85℃), ambient temp range – 35℃ to 65℃
Certification	CCC, compliant with GB/T 5013.3-2008
Packaging & Weight	50m/100m roll; reference weight 420kg/km

Key Advantages

High – Current Bearing: 35mm² cross – section, rated current 180-220A, ensures stable power transmission for medium – power welding machines, minimizing resistance loss and heat generation.
Ultra – Flexible: 326 ultra – fine strands, easy to bend, drag, and store, suitable for narrow – space and frequent – movement welding operations.
Durable Protection: Rubber sheath with wear, tear, oil, and chemical resistance, adapting to harsh industrial and commercial construction sites.
Safety Reliability: CCC – certified, self – extinguishing rubber insulation, preventing leakage and short – circuit risks, meeting engineering safety standards.
Cost – Effective: Factory direct supply, competitive price, long service life, reducing overall project and operation costs.

Application Scope

Engineering projects: Secondary wiring for arc welding, gas shielded welding, argon arc welding equipment, connecting welding torches and grounding clamps.
Commercial scenarios: Shipyards, steel structure workshops, automobile maintenance factories, and on – site construction welding operations.
Equipment matching: Suitable for 300-500A welding machines, compatible with various welding clamps and quick – connect terminals.
